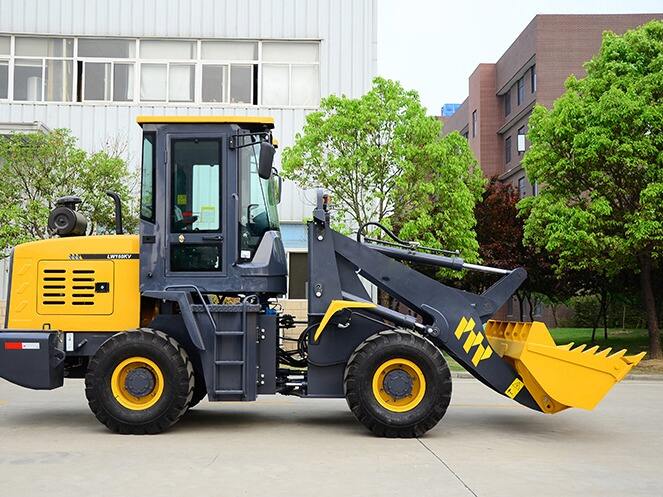

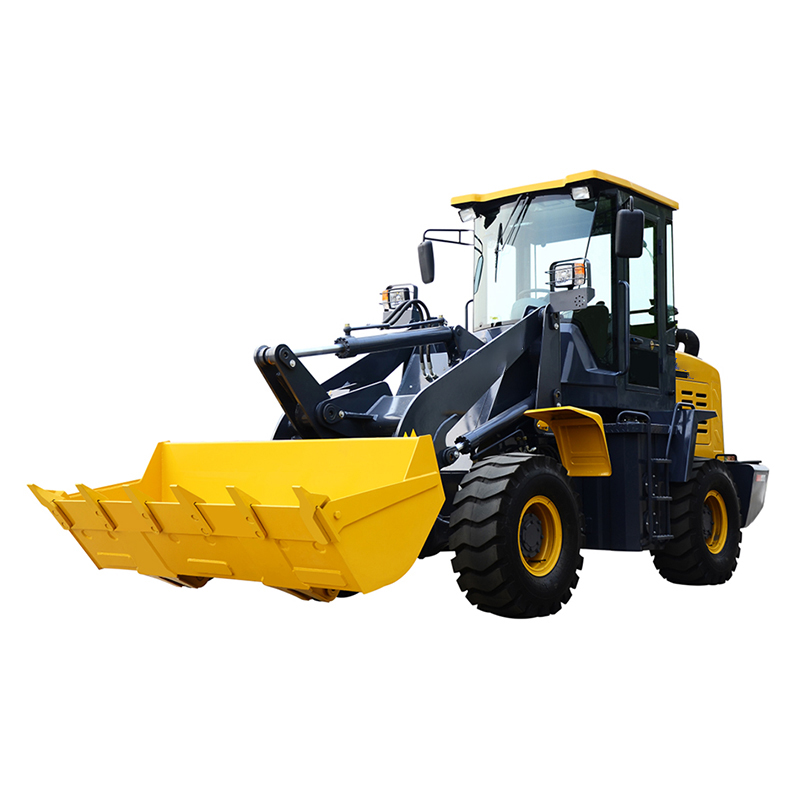

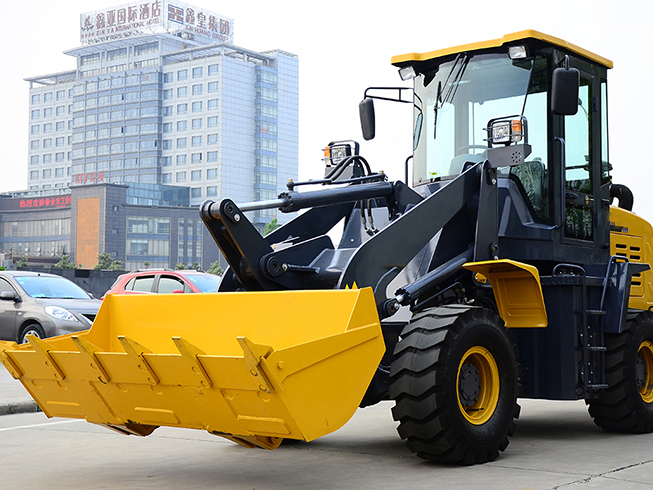

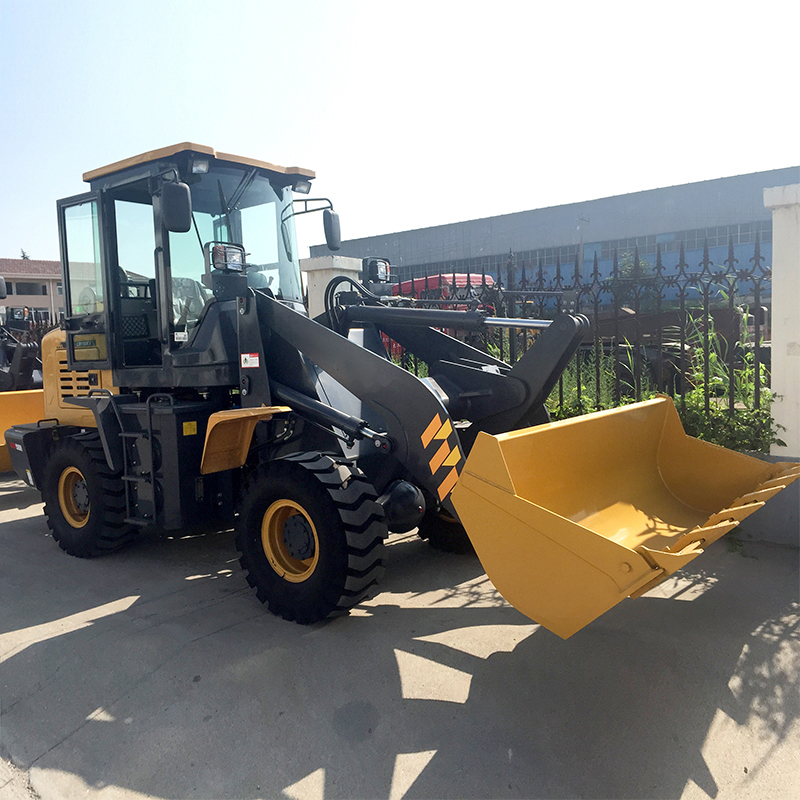

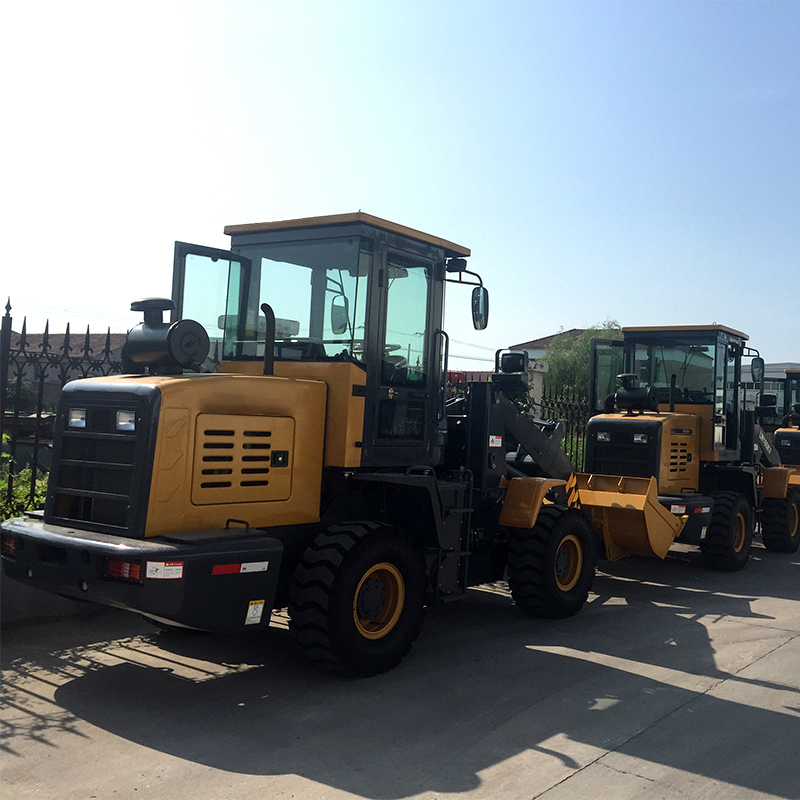

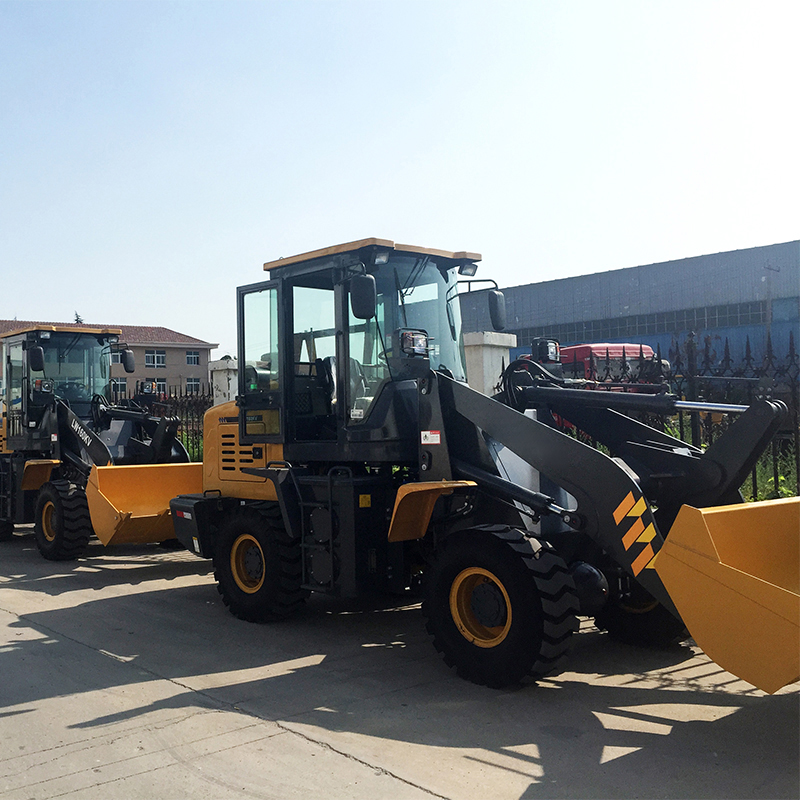

LW160FV 1.6T Mini Wheel Loaders
Feel free contact with our sale!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
|
Main Parameters
|
Parameters
|
Unit
|
||
|
Rated operating load
|
1300
|
kg
|
||
|
Dumping height
|
3000
|
mm
|
||
|
Dumping distance
|
950
|
mm
|
||
|
Bucket capacity
|
0.75
|
m3
|
||
|
Machine weight
|
5000
|
kg
|
||
|
Wheel base
|
2300
|
mm
|
||
|
Tread
|
1500
|
mm
|
||
|
Hinge-axis height at lifting limit
|
3600
|
mm
|
||
|
Max. breakout force
|
44
|
kN
|
||
|
Boom lifting time
|
5
|
s
|
||
|
Total cycle time
|
9.5
|
s
|
||
|
Min. turning radius over tyres
|
4450
|
mm
|
||
|
Articulation angle
|
35
|
|||
|
Gradeability
|
25
|
|||
|
Tyre size
|
16/70-16
|
–
|
||
|
Overall machine dimension L*W*H
|
5810*2060*2815
|
mm
|
||
|
Engine model No.
|
YN4C075-30CR
|
–
|
||
|
Rated Power/Speed
|
55/2400
|
kW/rpm
|
||
|
Travel Speed
|
Ⅰ-gear(F/R)
|
8
|
km/h
|
|
|
Ⅱ-gear(F/R)
|
20
|
km/h
|
||
