DAEKKO Series-210A Hydraulic Breaker for excavator

topauto — Tue, 12 Nov 2024 08:50:18 +0000

topauto — Tue, 12 Nov 2024 08:19:33 +0000

.Equipped with middle arm cylinder, big arm lifting cylinder, big arm and small arm
.Using an exclusive patented integrated structure, the excavation depth is up to 2000mm, which is 30%+ higher than the construction depth of traditional split arms
.The double-inlet, double-outlet, double-pump, multi-valve mid-arm cylinder design collects the hydraulic pressure of the bucket cylinder, providing double flow for the arm retraction and extension action, reducing the single action interval and enhancing the crushing strength.
.The mainboard of the integrated hook arm is made of low-carbon high-strength alloy steel, with a compact and complete structure, and the failure rate is reduced by 90%
.Wear-resistant block protection design reduces 99% of construction wear and extends the service life of the gear seat
.Low maintenance cost and fast repair efficiency, effectively reducing the adverse effects of fault damage on construction progress

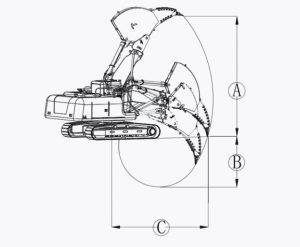

Configuration parameters

Project	Unit	Parameters
gross weight	kg	17500-19000
Maximum digging height	mm	7000
Maximum digging depth	mm	1900
Maximum digging distance	mm	6600
Boom transport size	mm	480013001650
Transport dimensions of the arm	mm	52002180430

topauto — Mon, 11 Nov 2024 01:44:02 +0000

Description		Unit	Parameter value
Outline dimension		mm	10955×2500×3800
Overall weight		kg	26500
Chassis	Model	ZZ5307N4647C
	Max. speed	km/h	90
	Max. grade-ability	%	40
	Wheelbase	mm	4600+1350
	Tire	11.00R22.5
Engine	Model	WD615.96
	Max. power	kW	279
	Max. torque	N·m/(r/min)	1590/1100~1600
	Displacement	L	9.276
	Emission standard	Eruo III
Pumping system	Theoretical output	m³/h	130
	Concrete pumping pressure	MPa	8
	Theoretical pumping times	Time/min	24~27
	Delivery cylinder diameter ×stroke	mm	φ230×2000
	Max. diameter of pumping concrete	mm	40
	Filling height	mm	1580
	Concrete slump range	cm	8~23
Placing boom	Reach height	m	39.1
	Reach depth	m	26.8
	Slewingradius	m	35.1
	Slewing angle	°	±270
	Unfolding angle of the 1st section	°	90
	Unfolding angle of the 2nd section	°	180
	Unfolding angle of the 3rd section	°	180
	Unfolding angle of the 4th section	°	235
	Unfolding angle of the 5th section	°	210
Stabilizer span	Longitudinal span of stabilizer	mm	6625
	Transverse span of front stabilizer	mm	5951
	Transverse span of rear stabilizer	mm	7368
Others	Lubrication method	Automatic lubrication
	Control method	Manual/remote control
	Volume of water box	L	600

topauto — Mon, 11 Nov 2024 01:44:02 +0000

item	value
Applicable Industries	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works
Showroom Location	None
Condition	New
Power Type	Diesel
Place of Origin	China
	Shanghai

Weight	27200kg
Dimension(LWH)	1110025003850mm
Warranty	1 Year
UNIQUE SELLING POINT	Long lifetime
Max. vertical conveying distance	37.1m
Max. horizontal conveying distance	33.1m
Productivity	12M³/H
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Marketing Type	New Product 2024
Warranty of core components	1 Year
Core Components	Motor, Pump, Engine
Product name	HB37K
Engine	Disel
Color	Customers’ Requirement
Brand	China top brand
Function	Concstruction
Key word	Deisel Engine Concrete Pump
Work efficiency	12M³/H
Concrete pump type	Diesel Motor Concrete Pump Machine
After-sales Service Provided	Service Machinery Overseas
